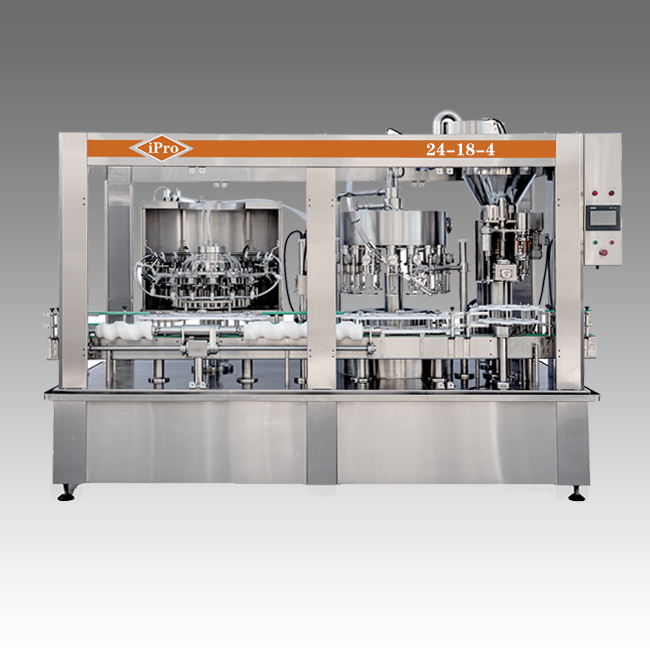

Prospirit 3000 is a fully automatic multi-functional unit that integrates rinsing, filling, aluminum cap sealing. It is dedicated to the fully automatic filling production of spirit. The integrated design can save space in the factory, improve the utilization rate of the factory, save more manual workload and labor costs, and avoid secondary pollution during the filling process.
Adopting the low vacuum filling principle and filling against the bottle wall, the spirits will not choke or foam, and the liquid level will be consistent after filling. Alternative options allow customizing the machine to specific needs.
| Model | ProSpirit 3000 | |
Rinser | n | 24 |
Filler | n | 18 |
Corker | n | 4 |
Screw capper | n | 4 |
| Speed (For 750ml bottle) | b/h | 3000 |
| Automatic lifting with reducer | n | 1 |
Power | kw | 6.6 |
Weight | kg | 4000 |
Dimensions | mm | 5400*2050*2200 |

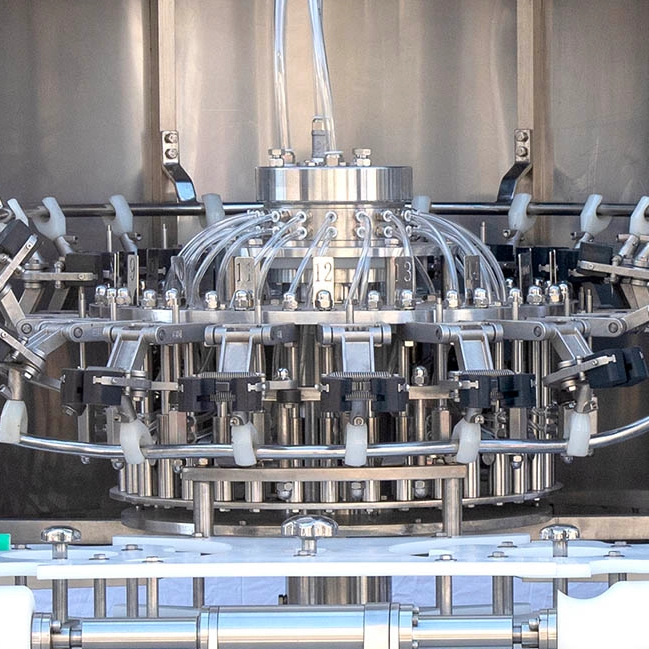

Rinsing and Blowing
Filling

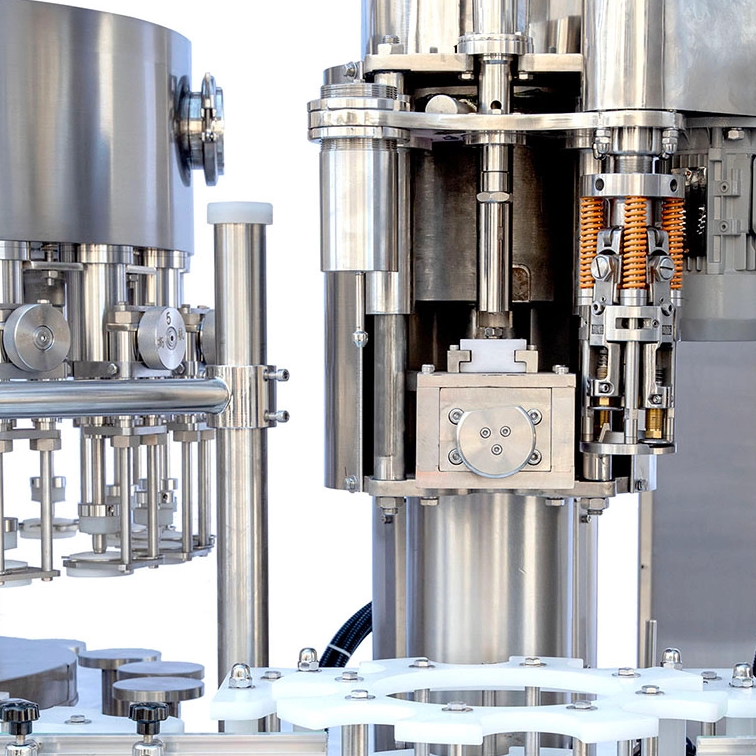

Capping
